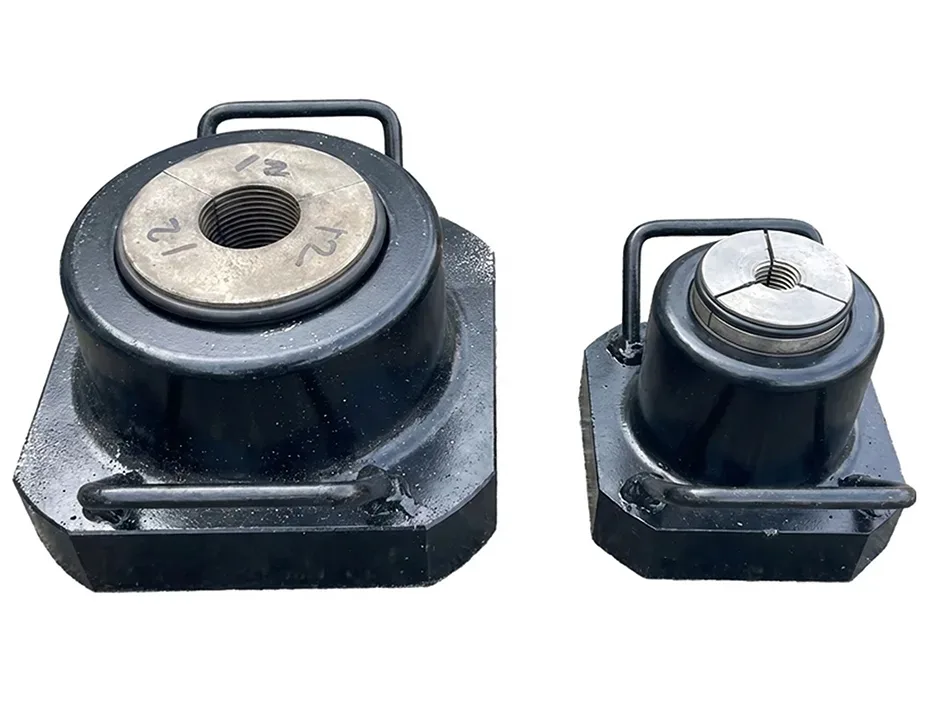

WHAT ARE REBAR GRIPS?
Rebar grips are mechanical wedge anchoring devices that transfer tensile force from a hydraulic jack into a reinforcing bar. Hardened, serrated wedges sit in a tapered steel body, so as the jack pulls, the wedges bite harder into the bar. Used with center-hole jacks, quick-acting rebar grips simply slide over grouted or epoxied rebar, allowing pullout tests to be set up in seconds on highway, bridge and tunnel projects. Grips are also available for rigging and special applications.
REBAR GRIPS
#4 to #18 Rebar Grips
REBAR GRIPS
Center-Hole Jack
REBAR GRIPS
Grip & Jack Kit
REBAR GRIPS
Replacement Wedges
RENTALS
WB Equipment has provided jack & cylinder rentals for over 30 years,
We offer both short- and long-term rental options. Our extensive rental fleet includes high-quality hydraulic jacks, cylinders, torque and tension tools, lifting systems, and other specialized equipment. Serving industries such as construction, infrastructure, and energy,
SALES
WB Equipment provides hydraulic equipment rentals for the whole of the USA.
WB Equipment Rentals provides reliable, high-quality machinery for construction, industrial, and commercial projects. Their inventory includes hydraulic tools, lifting equipment, and power solutions designed for efficiency and safety.
SERVICE
WB Equipment has provided hydraulic jack & cylinder sevicing for over 30 years,
WB Equipment Servicing ensures machinery reliability through preventative maintenance, expert repairs, and safety checks. It minimizes downtime, extends equipment lifespan, and supports efficient, safe operations across industrial and construction environments.
Rebar Grips
"Power Under Pressure:
Rebar Grips from WB Equipment Corp."

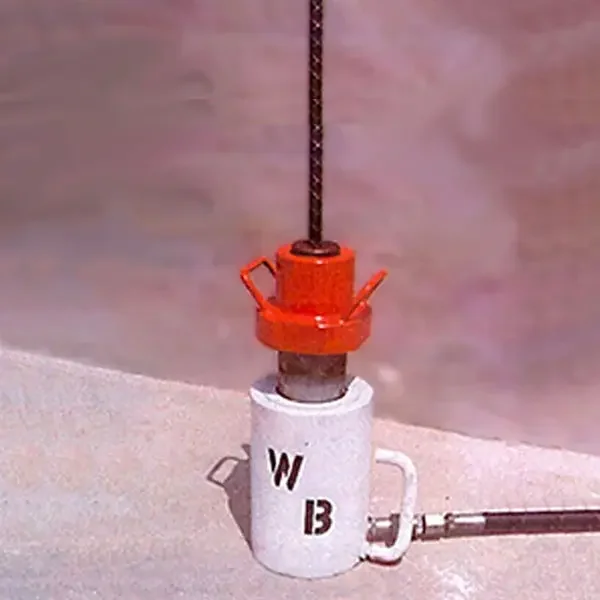

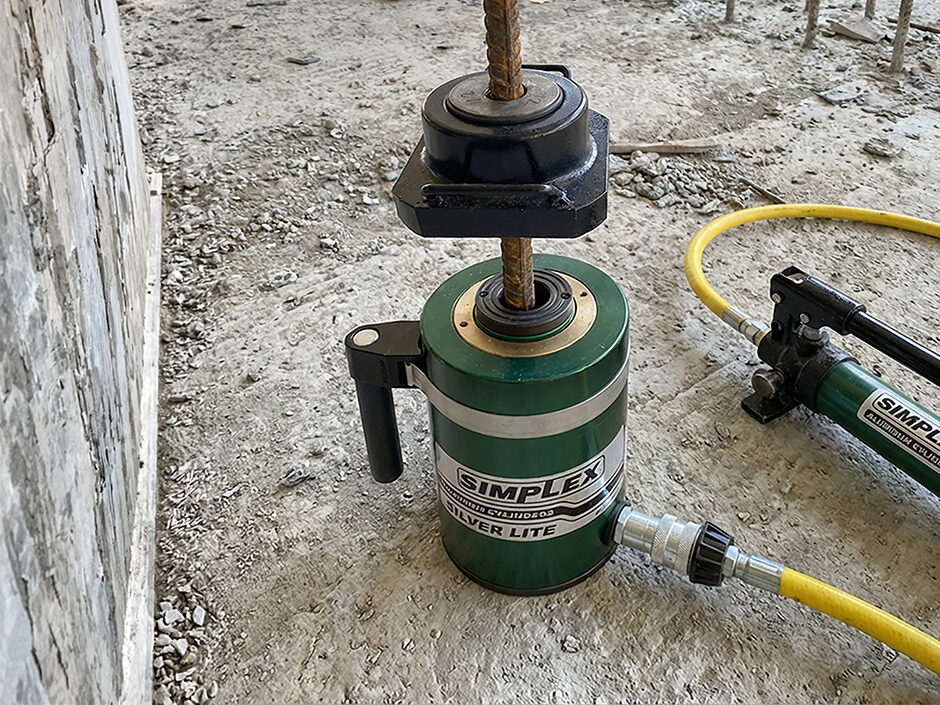

Quick Acting:
Slip the jack and grip over grouted rebar and apply load in seconds.
Sizes #4 to #18:
Bar-specific grips matched to ASTM A615 and A706 reinforcing bar.
Three-Wedge Design:
Hardened, serrated wedges grip deformed bar without slipping.
Enerpac & Simplex Compatible:
Use with center-hole cylinders and pumps up to 1,500 tons. [1]
OTHER PRODUCTS AVAILABLE FOR RENTAL
~ WITH REBAR GRIPS ~

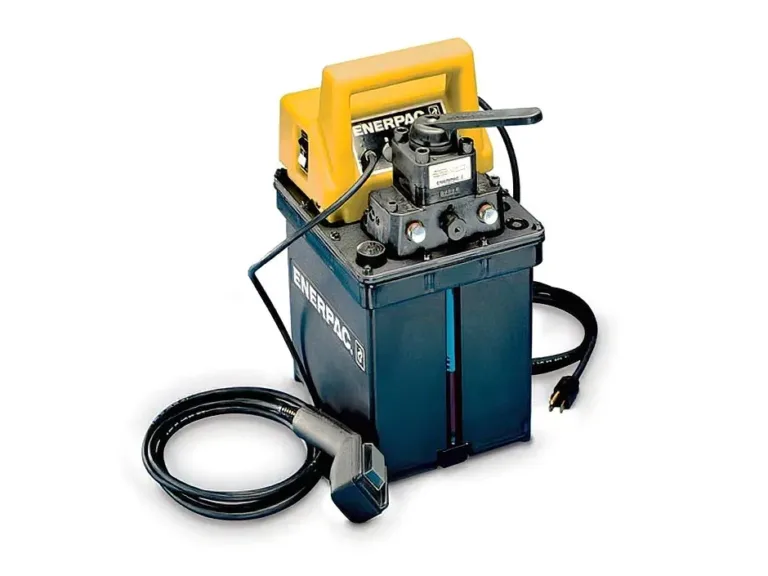

PEJ1401B, Two Speed, Electric Hydraulic Pump, 4/3 Manual Valve,115V, Use with Double-Acting Cylinders
Product code: PEJ1401B
Max pressure: 10,000 psi
Power source: Electric
Action type: Double-acting
Capacity: 1.5 gal
Motor voltage: 115 V

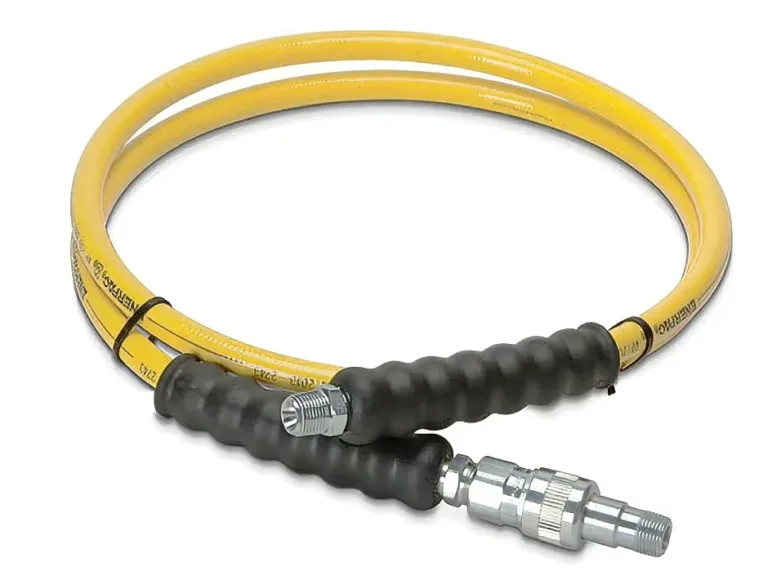

HA7206B, 6ft., Thermo-plastic High Pressure Hydraulic Hose, .25 in. Internal Diameter
Product code: HA7206B
Oil capacity: 3.54 in³
Maximum pressure: 10,000 psi
Accuracy: 1% of full scale
Thread: 1/4 NPTF in
Gauge adaptor: GA3

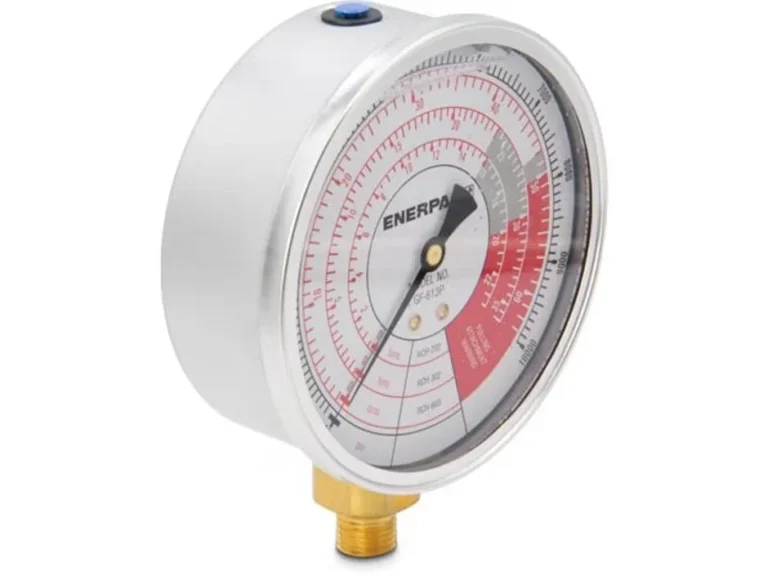

GF813P, Hydraulic Force and Pressure Gauge, Imperial Scale, for use with 20, 30, and 60 ton Cylinders
Product code: GF813P
Tonnage range: 20, 30 & 60 ton
Face diameter: 4 in
Accuracy: 1% of full scale
Thread: 1/4 NPTF in
Gauge adaptor: GA3

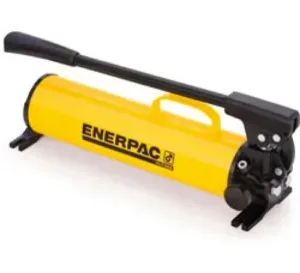

Enerpac P39 Single Speed ULTIMA Steel Hydraulic Hand Pump, 41 in³ Usable Oil, 10,000 psi
RENT NOW!Product code: P39
Max pressure: 10,000 psi
Max flow rate: 0.15 in³/stroke
Fluid capacity: 41 in³
Action type: Single-acting
Power type: Manual hand
WB Equipment Product & Services Catalog
Select Your Requirements from Popular Categories
Popular Categories

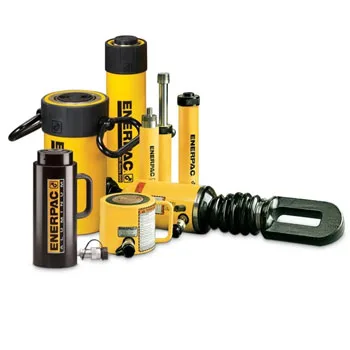

Enerpac & Simplex - Hydraulic Cylinders
Enerpac Cylinders

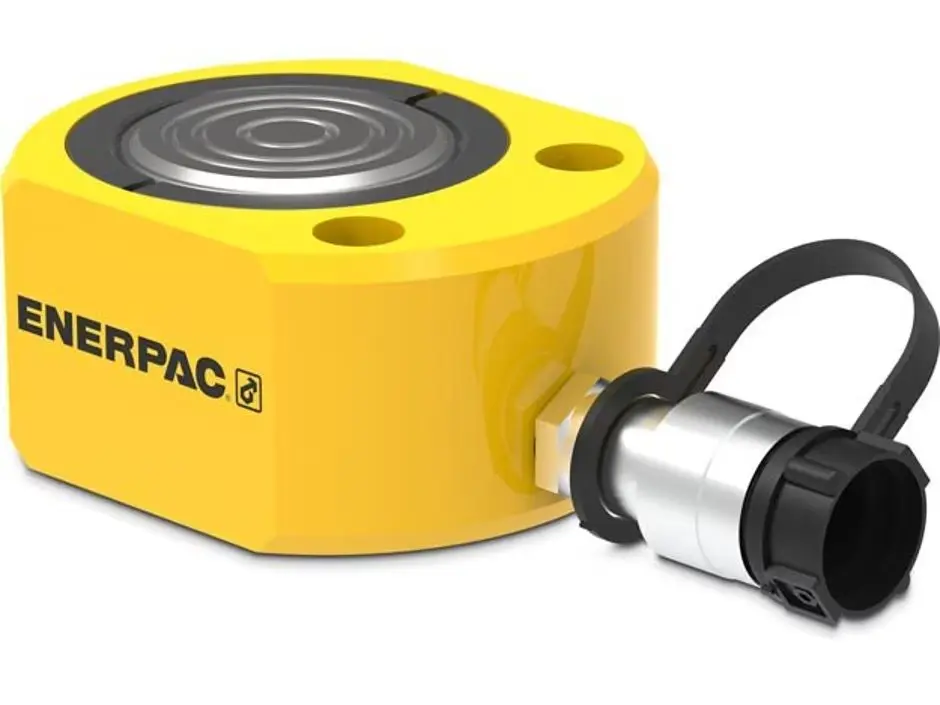

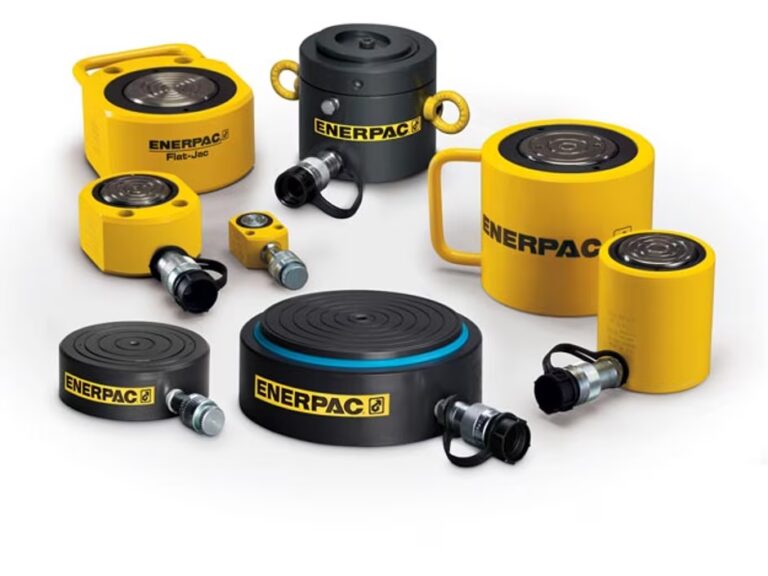

Low-Height Cylinders
Low-profile cylinders designed for low clearance applications
Capacity: 5 – 1,000 tons
Stroke: 0.24 – 2.44 in
Collapsed Height: 1.08 – 7.56 in
Enerpac Cylinders

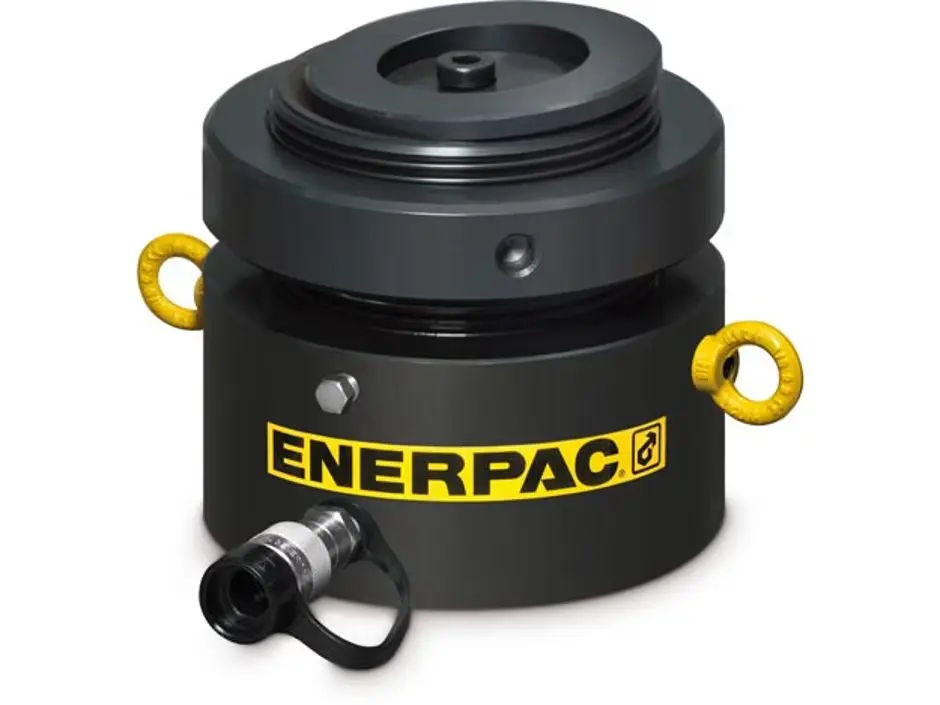

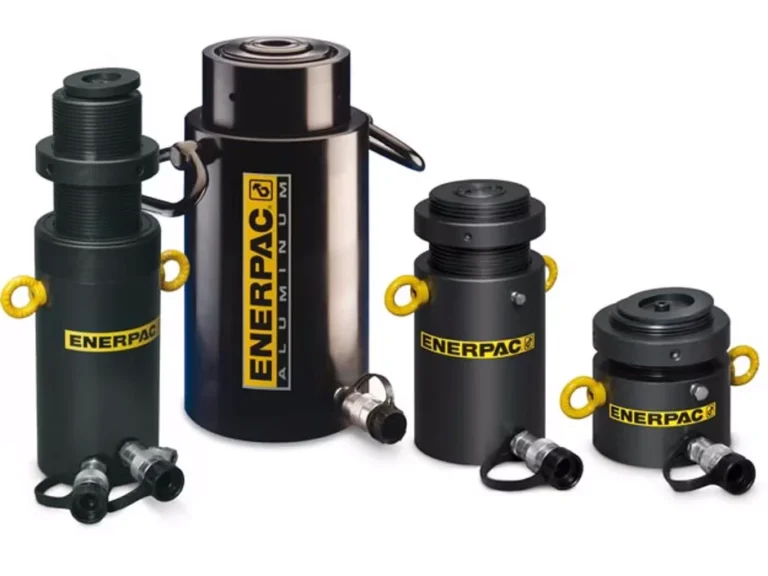

Lock Nut Cylinders
Mechanically locking cylinders for safely holding a load
Capacity: 20 – 1,000 tons
Stroke: 1.77 – 11.81 in
Collapsed Height: 4.94 – 28.90 in
Enerpac Cylinders

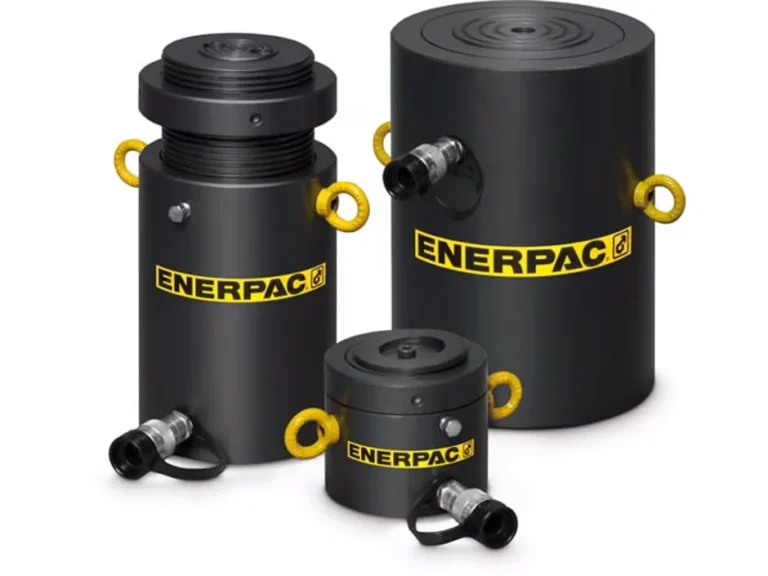

High Tonnage Cylinders
Cylinders with the highest quality construction for enhanced durability
Capacity: 50 – 1,000 tons
Stroke: 1.97 – 11.81 in
Collapsed Height: 5.91 – 28.90 in
Enerpac Cylinders

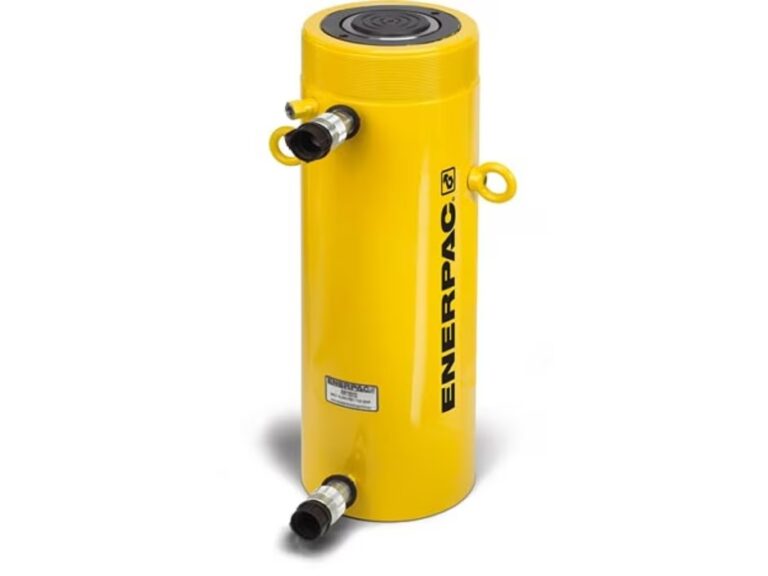

Double-Acting Cylinders
Precise control and speed: the plunger advances and retracts hydraulically
Capacity: 4 – 1,000 tons
Stroke: 1.13 – 48 in
Collapsed Height: 7.19 – 64.75 in
Simplex Cylinders

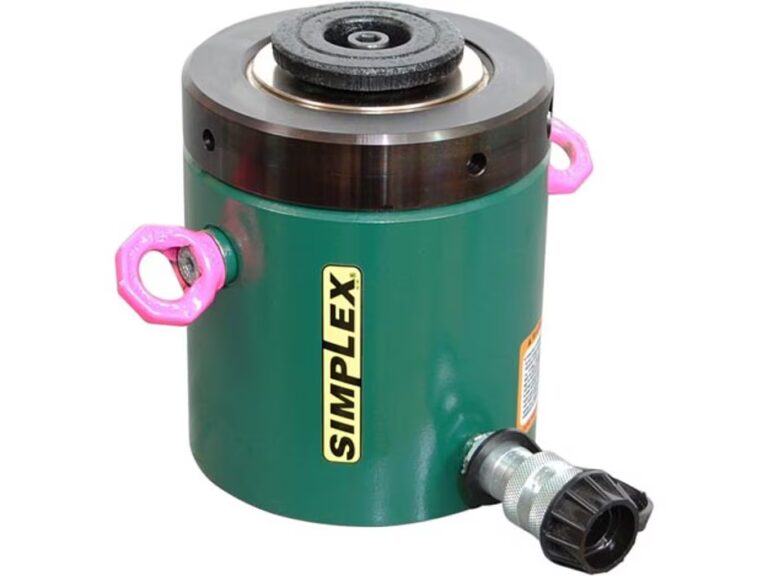

Lock Nut Cylinders
Lock nut cylinders for extended, mechanically locked load holding
Capacity: 34 – 575 tons
Stroke: 1.77 – 11.81 in
Simplex Cylinders

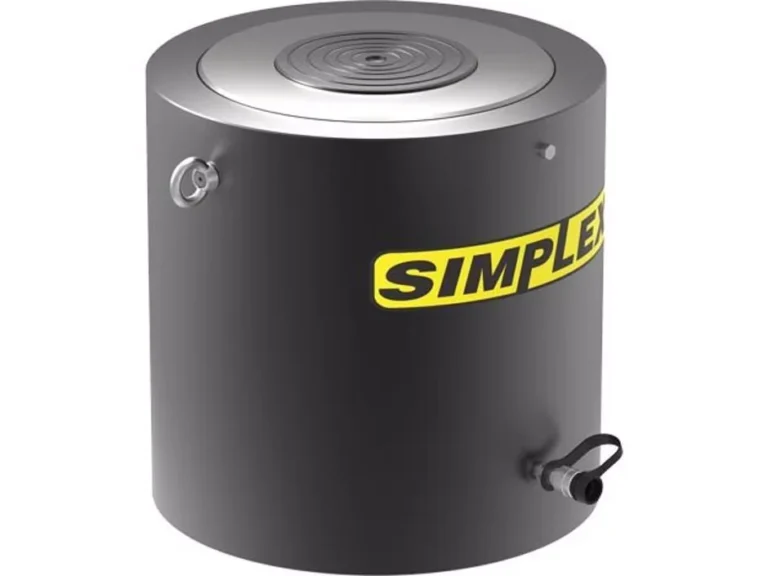

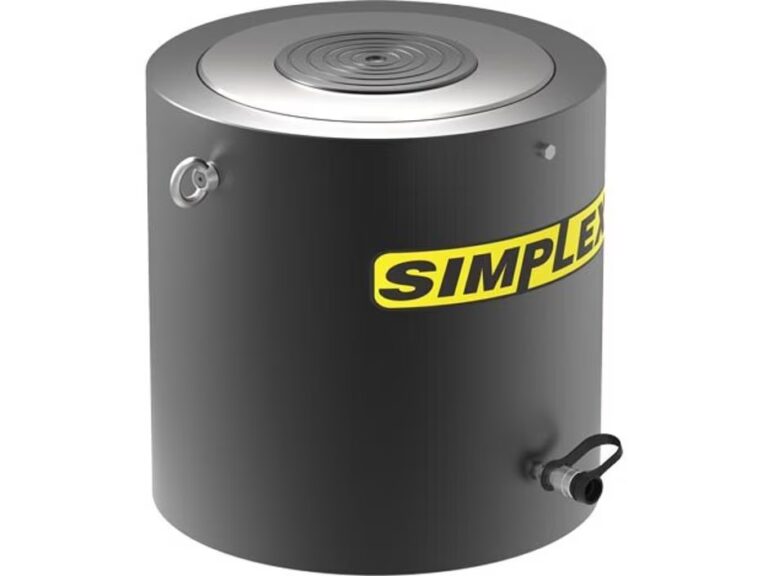

High Tonnage Cylinders
Heavy-duty single- and double-acting cylinders, with lock nut options
Capacity: Up to the 1,000-ton class
Stroke: 1.77 – 11.81 in
Simplex Cylinders

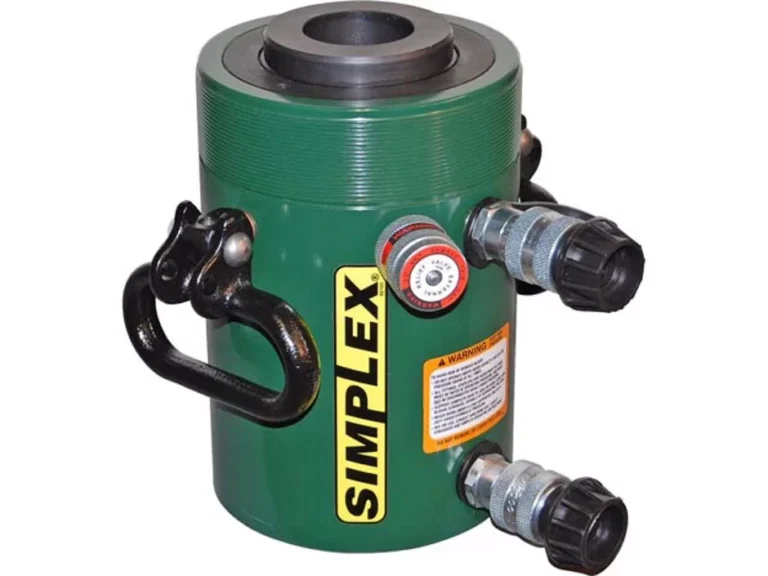

Center-Hole Cylinders
Single- and double-acting cylinders with a center tube for pulling and tensioning with a rod or cable
Capacity: 12 – 646 tons
Stroke: 0.31 – 10.12 in
Simplex Cylinders

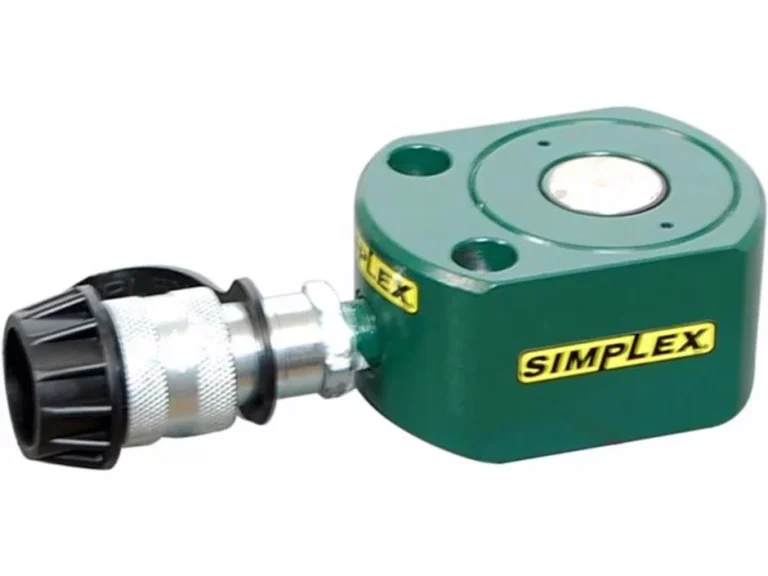

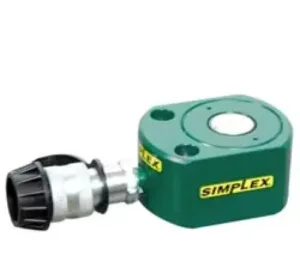

Low Height Cylinders
Compact, low height cylinders for tight spaces
Capacity: 10 – 150 tons
Stroke: 0.44 – 2.44 in

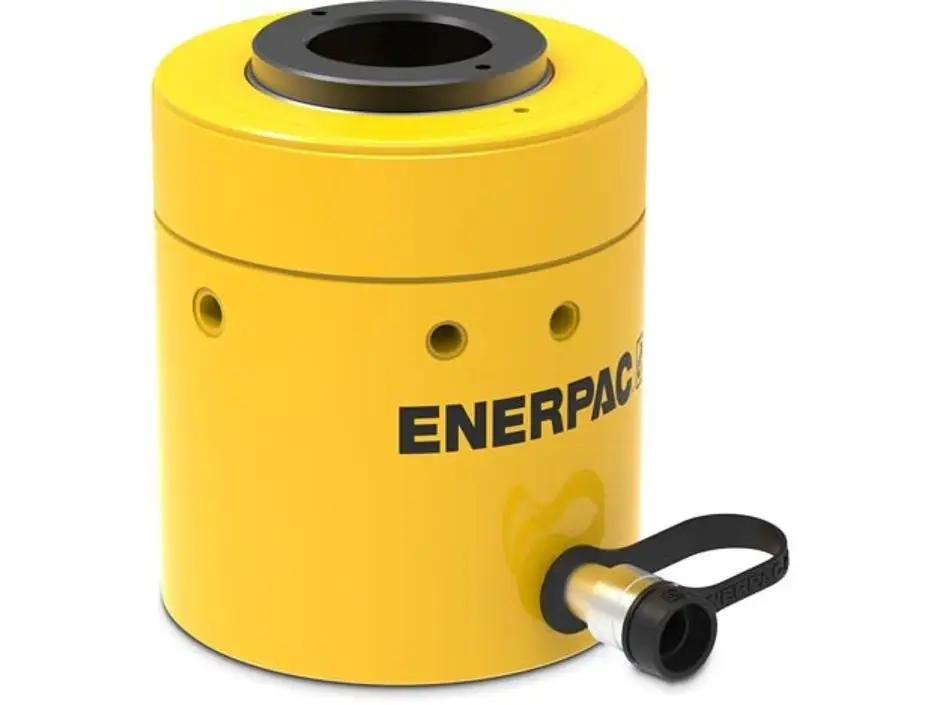

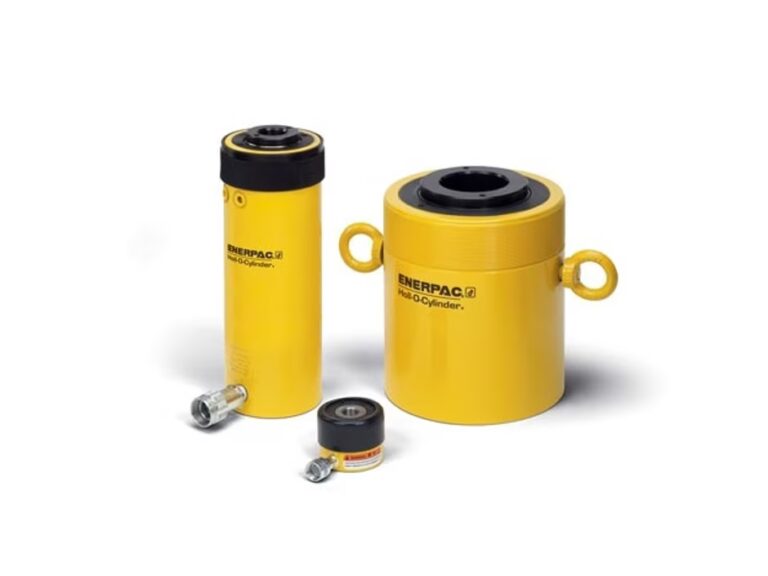

Enerpac Cylinders

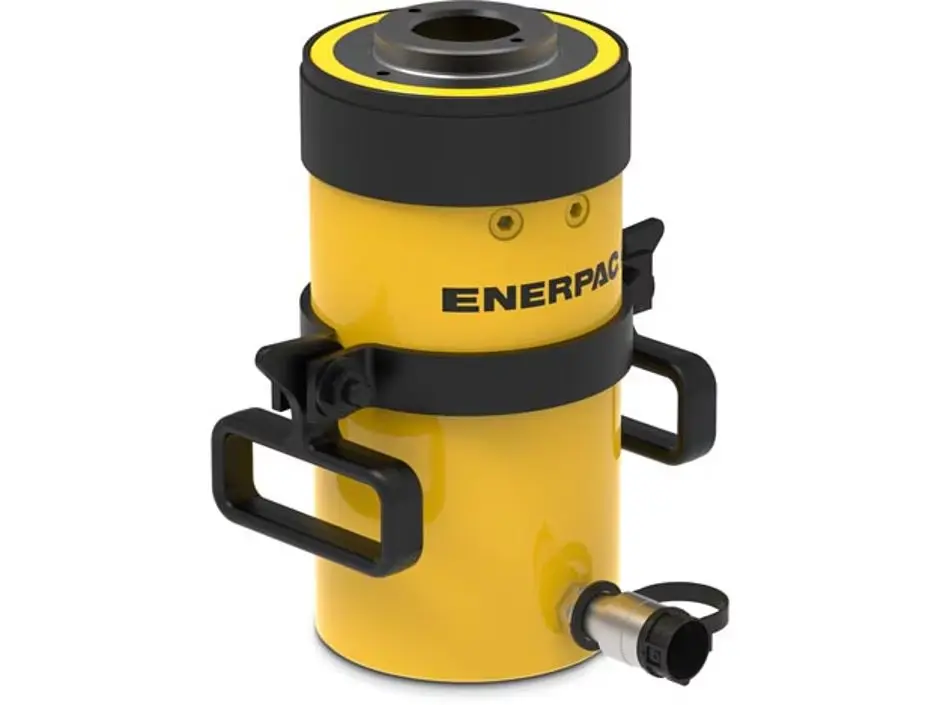

Hollow Plunger Cylinders
Hollow bore cylinders for pulling and tensioning with a bar or cable
Capacity: 12 – 660 tons
Stroke: 0.31 – 10.13 in
Center Hole Diameter: 0.68 – 5.31 in

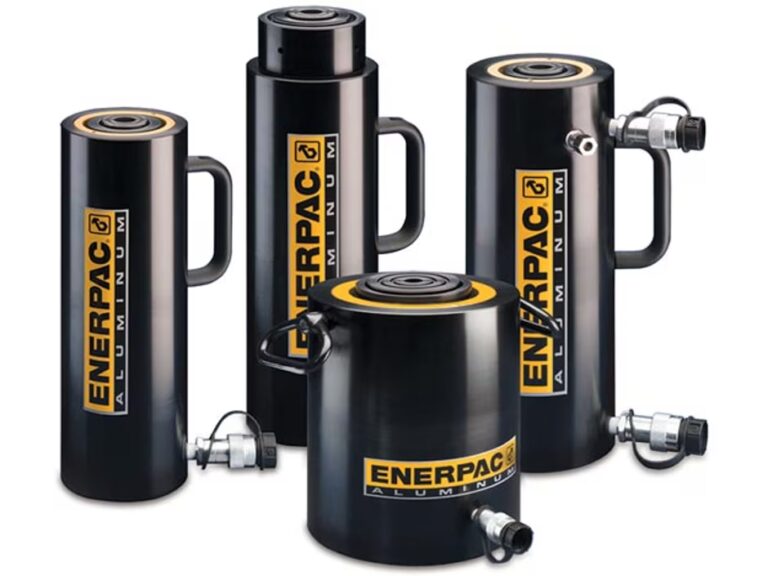

Enerpac Cylinders
Lightweight Cylinders
Durable aluminum cylinders for applications where weight is a factor
Capacity: 10 – 150 tons
Stroke: 1.97 – 9.84 in
Collapsed Height: 6.06 – 20.59 in
Enerpac Cylinders

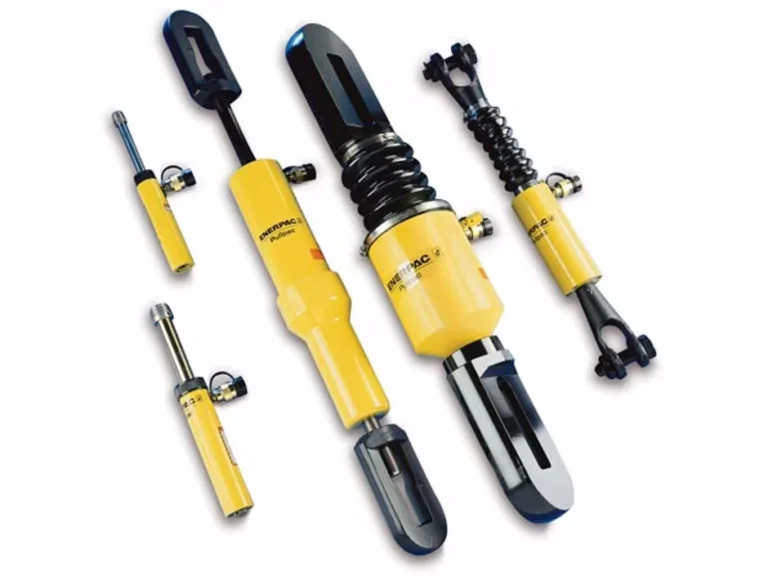

Pull Cylinders
Cylinders designed for pulling objects together or apart
Capacity: 2.5 – 60 tons
Stroke: 5.00 – 6.02 in
Collapsed Height: 10.44 – 43.71 in

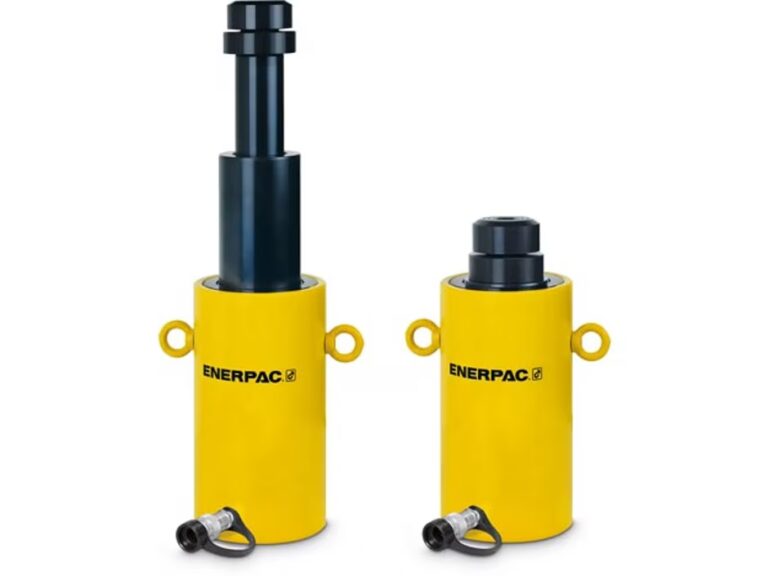

Enerpac Cylinders
Telescopic Cylinders
Multi-stage cylinders designed for extended lift heights
Capacity: 5 – 75 tons
Stroke: 0.67 – 23.62 in
Collapsed Height: 1.77 – 18.74 in
Simplex Cylinders
General Purpose Cylinders
General purpose cylinders built to ANSI/ASME B30.1, rated 10,000 psi
Capacity: 5 – 150 tons
Stroke: 0.62 – 24 in

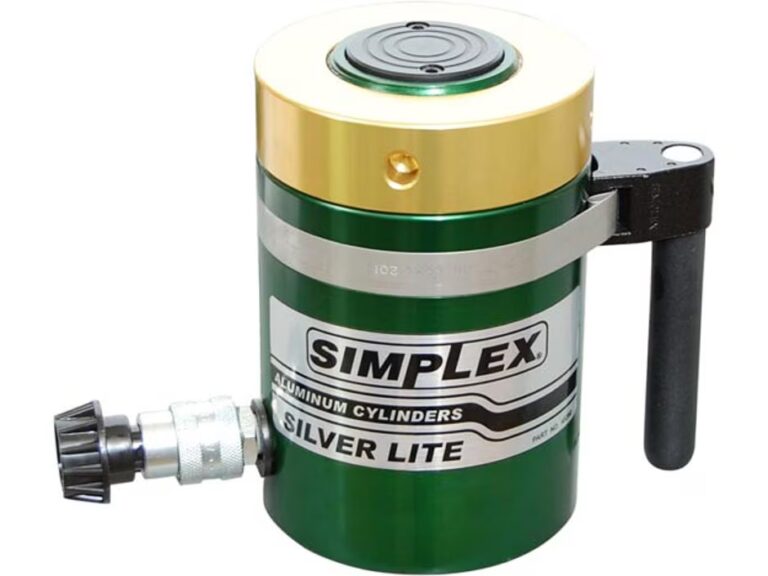

Simplex Cylinders
Aluminum Cylinders
Lightweight aluminum cylinders, including spring return, lock nut and center hole models
Capacity: 30 – 150 tons
Stroke: 2 – 10 in
Simplex Cylinders

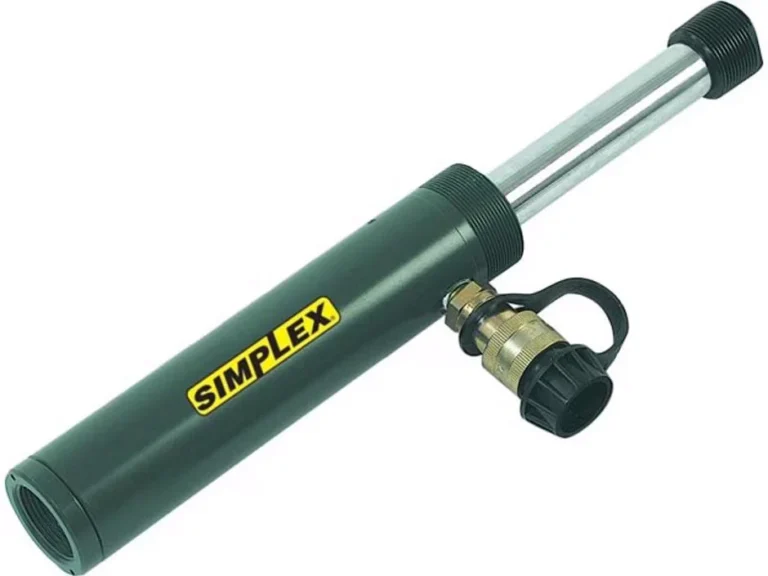

Pull Cylinders
Single- and double-acting pull cylinders
Capacity: 2 – 100 tons
Stroke: 5 – 6 in
Simplex Cylinders

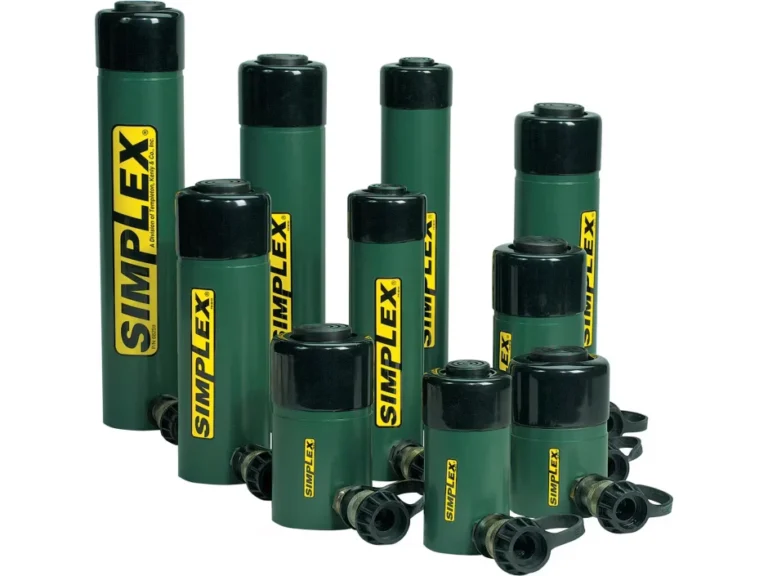

Cylinder Tonnages
The full Simplex cylinder range, sorted by tonnage
Capacity Class: 2 – 1,000 tons
Max Pressure: 10,000 psi
Enerpac Cylinders

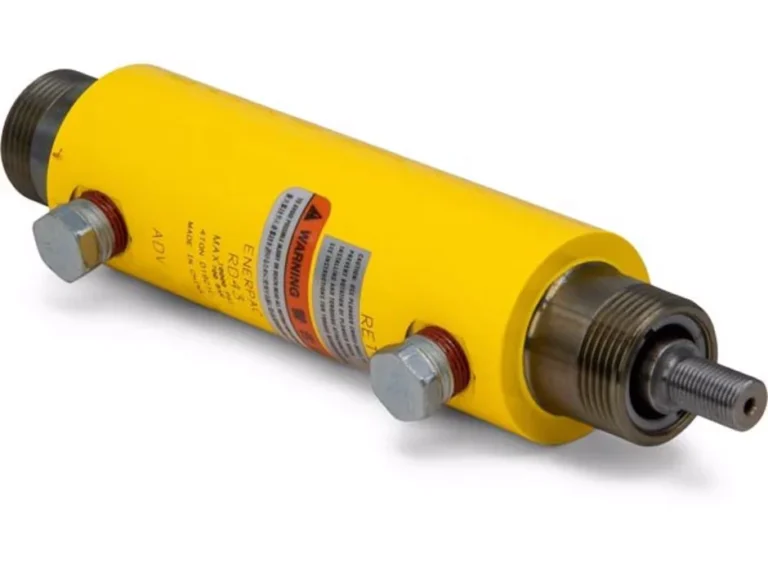

Production Cylinders
High cycle cylinders compatible with mounting attachments to simplify fixturing
Capacity: 4 – 25 tons
Stroke: 1.13 – 10.25 in
Collapsed Height: 7.31 – 20.69 in
Enerpac Cylinders
Long Stroke Cylinders
12 to 48 in stroke cylinders designed for extended lift heights
Capacity: 10 – 1,000 tons
Stroke: 12 – 48 in
Collapsed Height: 12.48 – 64.75 in
Enerpac Cylinders

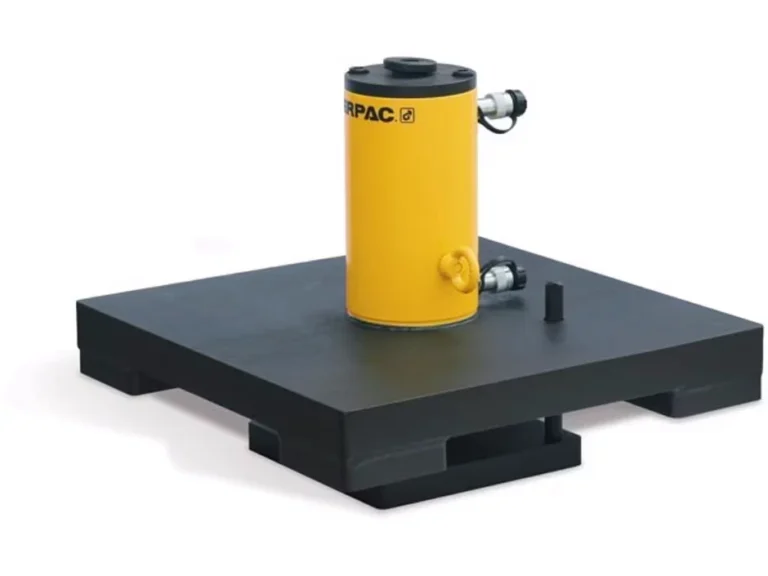

Climbing Jacks
Designed for incremental lifting and lowering with cribbing
Capacity: 55 – 220 tons
Stroke: 5.91 – 6.34 in
Enerpac Cylinders

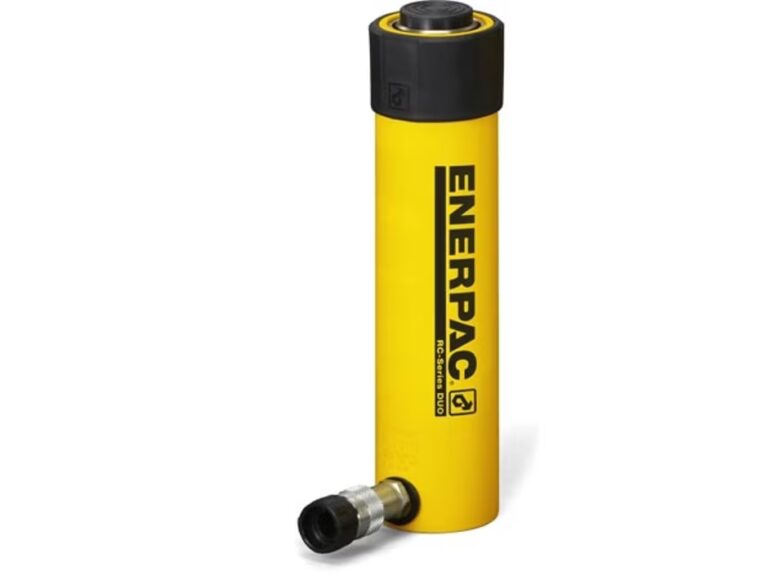

Single-Acting Cylinders
Simple operation: the plunger advances hydraulically in one direction
Capacity: 2.5 – 1,000 tons
Stroke: 0.24 – 23.62 in
Collapsed Height: 1.08 – 43.71 in
Enerpac Cylinders

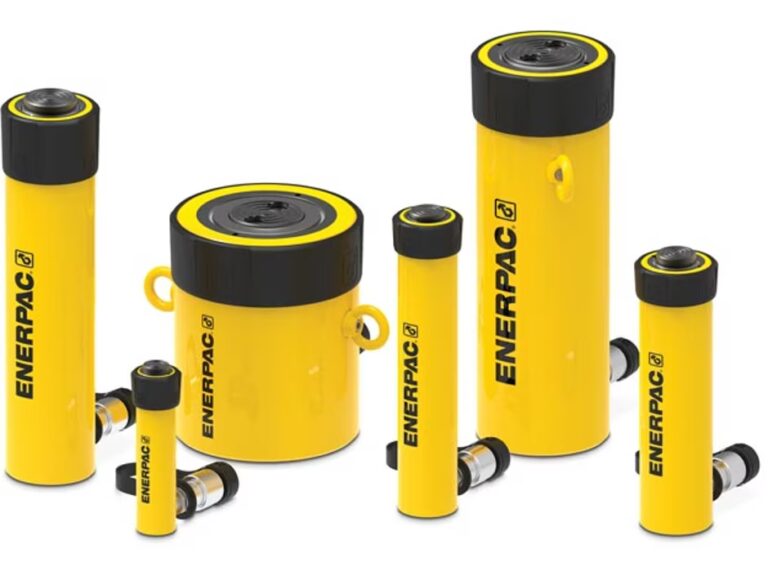

General Purpose Cylinders
Versatile steel cylinders designed for a wide range of applications
Capacity: 5 – 500 tons
Stroke: 0.63 – 48.00 in
Collapsed Height: 1.63 – 64.75 in
Enerpac Cylinders
Cylinder Tonnage
Enerpac cylinders categorized by tonnage
Capacity: 2.5 – 1,000 tons
Stroke: 0.24 – 48.00 in
Collapsed Height: 1.08 – 64.75 in

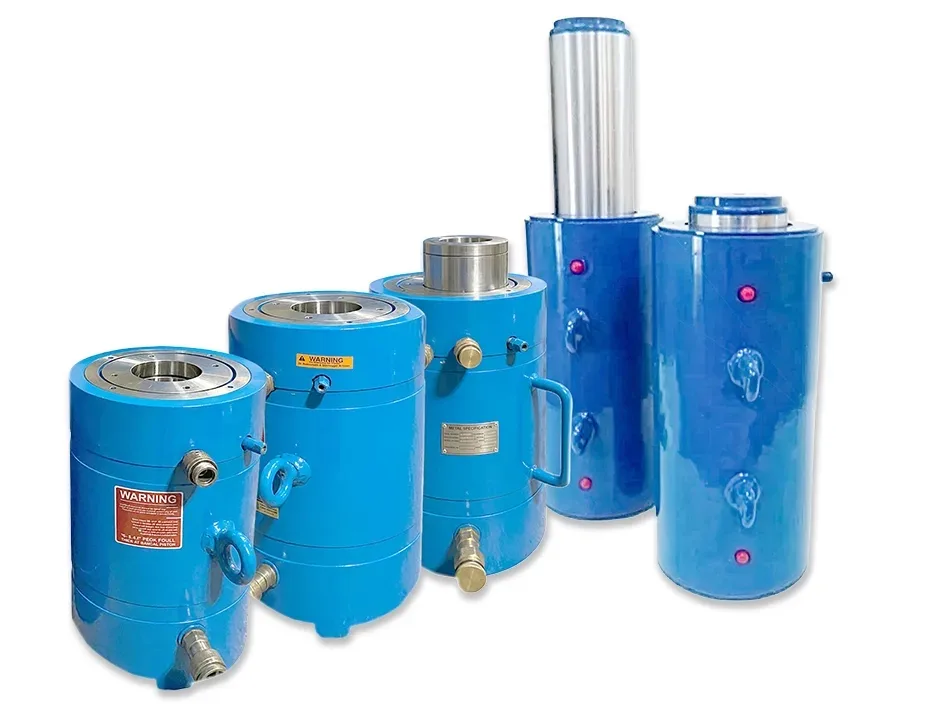

Custom Cylinders

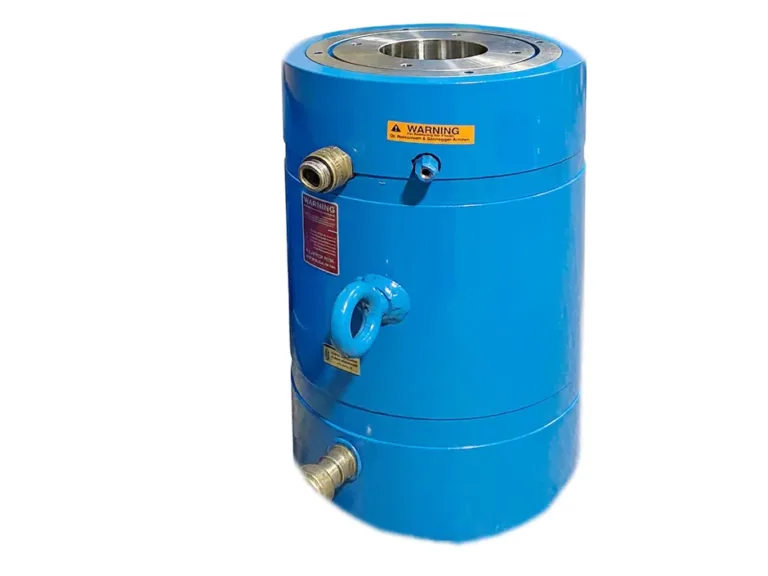

Center-Hole Cylinders
Center-hole cylinders designed and built by WB Equipment to your required capacity, stroke and hole size. Call our engineers to discuss your application.
VIEW PRODUCTSEnerpac Cylinders

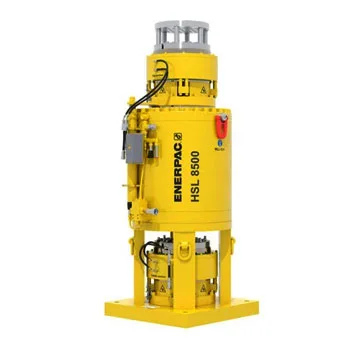

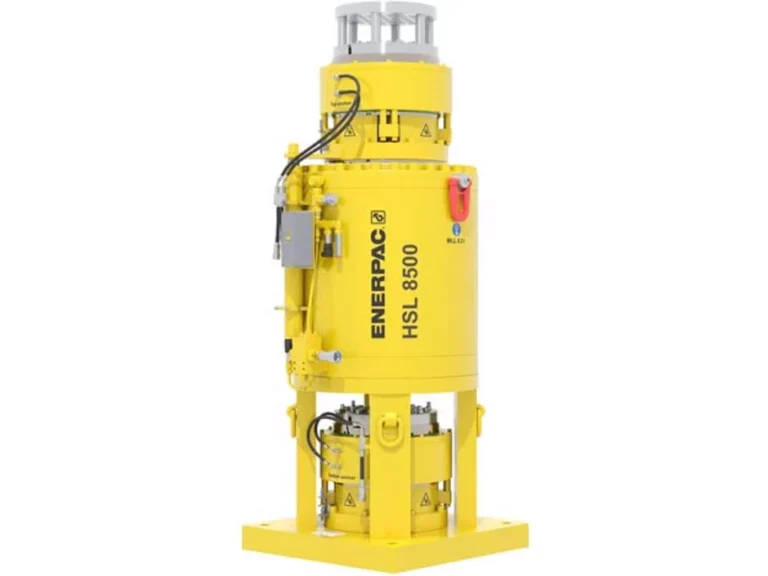

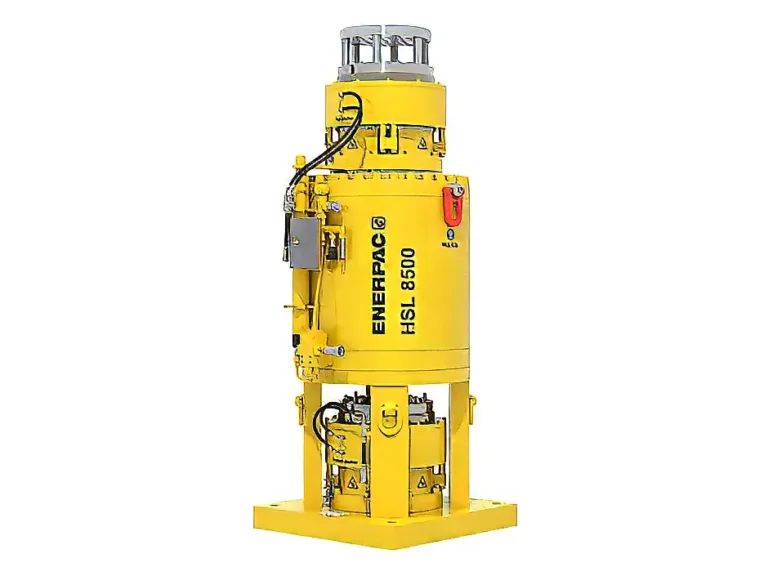

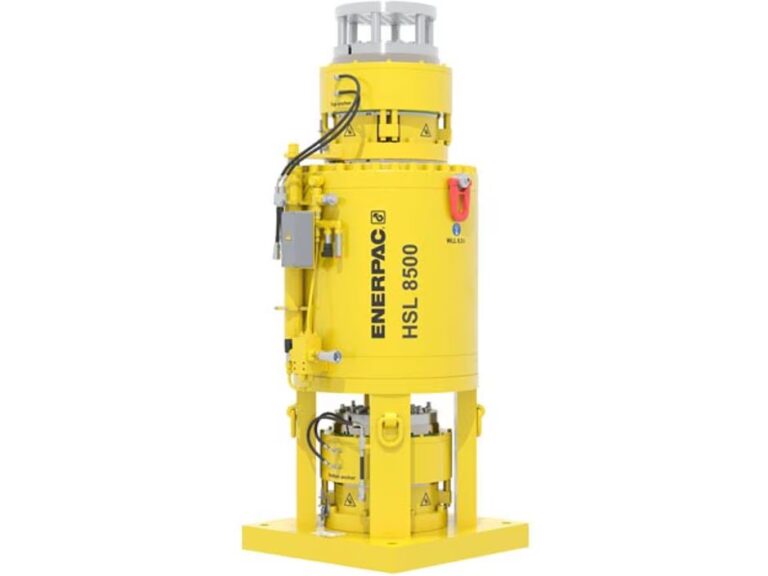

Strand Jacks
Computer-controlled strand jacks for lifting and lowering very heavy loads
Capacity: 17 – 1,405 tons
Stroke: 9.8 – 23.6 in
Max Pressure: 5,000 psi
REBAR GRIP SPECIFICATIONS
📘 What Are Rebar Grips?

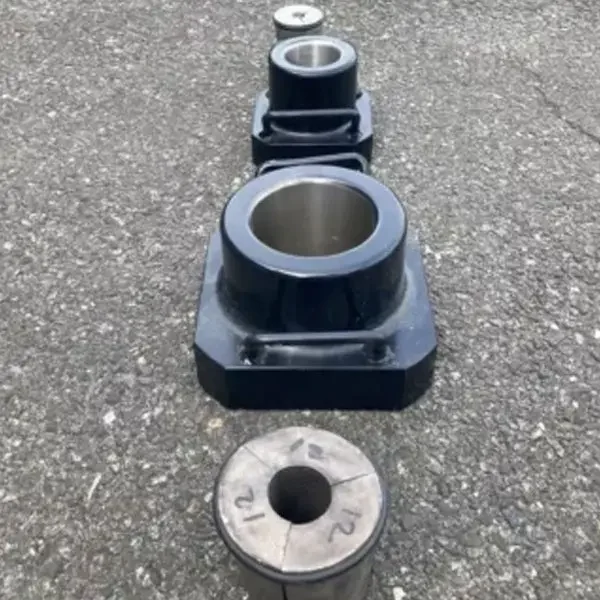

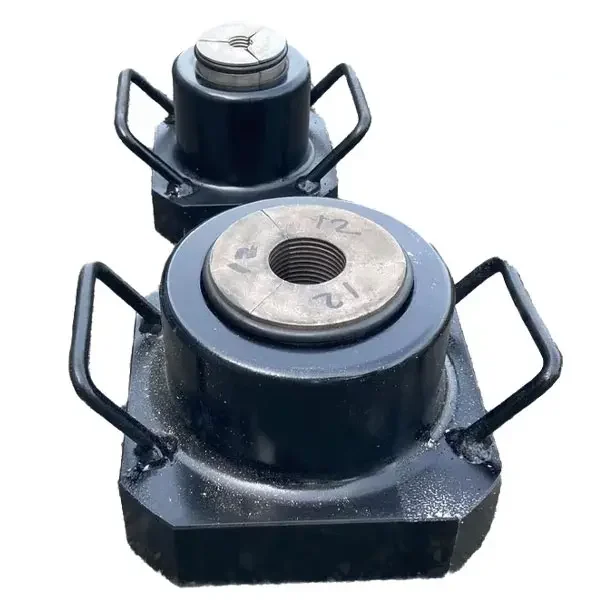

Rebar grips are wedge chucks that hold a reinforcing bar while a hollow hydraulic jack pulls on it. The load path is jack, grip body, wedges, then rebar.
The tapered body converts the axial pull into radial clamping force, so the harder the jack pulls, the tighter the wedges grip.
Grips are bar-size specific and are rated by their maximum tensile load, which must exceed the target test load by a safety margin.
⭐ Key Features & Benefits of Rebar Grips
WB Equipment rebar grips are designed for fast, reliable testing.
Hardened wedges
Serrated teeth bite into rebar ribs to prevent slip.
Precision taper
Typical 6° to 9° included angle for holding force and easy release.
Retaining spring
Holds wedges in position during setup.
Bar-matched sizes
Grips for #4 through #18 rebar.
High capacity
Used with jack systems up to 1,500 tons.
Rental or sale
Available to rent or buy, alone or with jacks.
🔧 Equipment Used with Rebar Grips

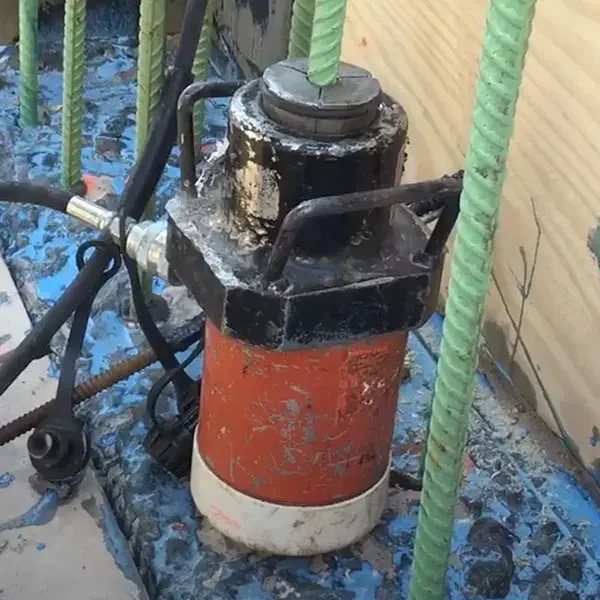

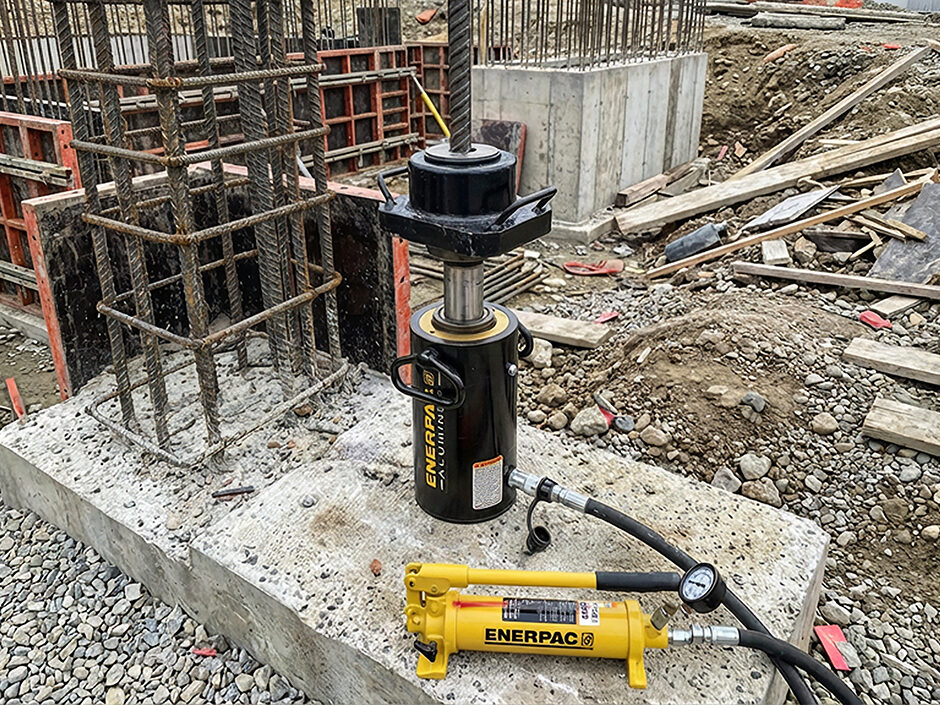

A rebar pullout setup typically includes:
• Rebar grip sized to the bar
• Center-hole (hollow plunger) hydraulic cylinder
• Hand, electric or battery hydraulic pump

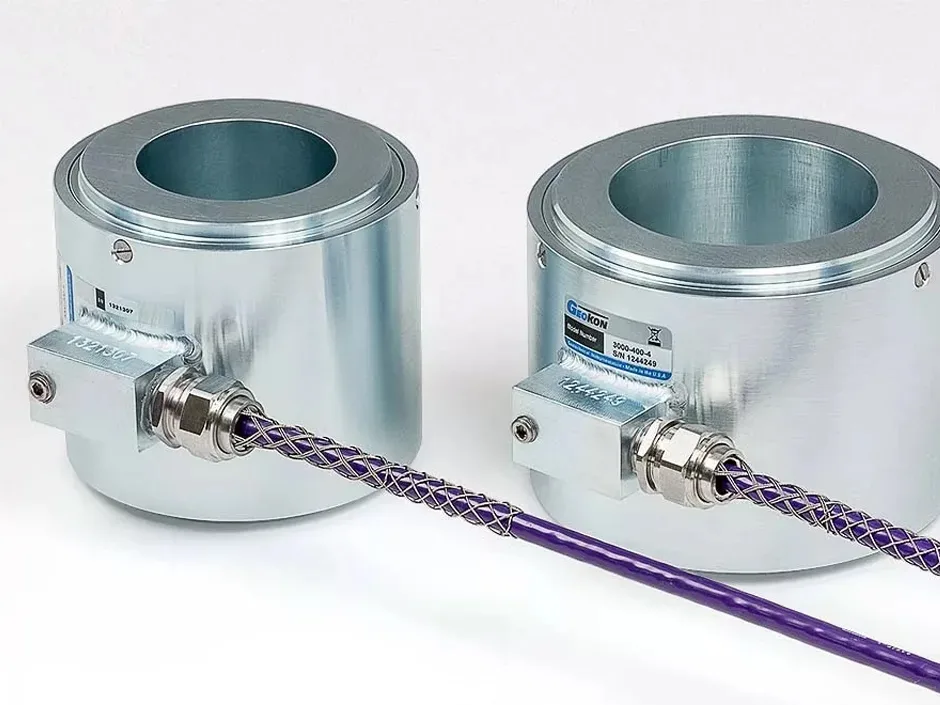

• Calibrated gauge or load cell with readout
• Bearing plate or reaction chair
• Dial indicator for bar displacement
• Hoses and couplers
🏗️ Common Applications for Rebar Grips
Rebar grips are commonly used for:
• Pullout testing of grouted or epoxied rebar
• Highway and bridge dowel testing
• Tunnel and retaining wall anchor bars
• Proof loading post-installed rebar
• Tensioning reinforcing bars
• Rigging and special lifting applications
• Quality control on DOT projects
📈 Advantages of Rebar Grips
Compared with threaded couplers and welded fixtures, rebar grips offer:
Fast setup
No threading or welding of the bar.
Reusable
Grips and wedges can be used again and again.
Accurate testing
Axial load applied straight along the bar.
Minimal bar damage
Wedges grip ribs without cutting the bar.
Versatile
One jack can test many bar sizes with different grips.
⚠️ Limitations to Plan For
For safe, accurate rebar grip use, plan for:
• Using the correct grip for each bar size
• Grip capacity at least 25% above the test load
• Clean wedges and correct orientation
• Normal wedge seating slip at first loading
• Epoxy-coated bar needs special wedges
• Enough exposed bar length for the jack and grip
• Keeping people clear of the bar line during loading
💡 Why Choose WB Equipment?
One supplier
Grips, center-hole jacks, pumps and gauges from one source.
Engineering advice
Help choosing grips and jacks for your bar sizes.
Rent or buy
Rent grip kits for a project or buy for ongoing testing.
Nationwide delivery
Equipment shipped to your jobsite, with overnight options.
🏭 Industries That Use Rebar Grips
• Highway and bridge contractors
• Tunnel and underground contractors
• Testing and inspection agencies
• Concrete repair and retrofit contractors
• Departments of transportation
• Precast and post-tensioning contractors
• Rigging companies
🧭 How to Choose the Correct Rebar Grip
Selecting the right grip depends on:
• Bar size (#4 to #18)
• Bar type: plain, deformed or epoxy-coated
• Required test or tensioning load
• Center-hole size of your jack
• Exposed bar length available
• Test frequency and number of bars
WB Equipment can help match grips and jacks to your rebar. Call 866-522-5464.
📋 What We Need From You
To quote or recommend equipment, please send:
• Bar sizes to be tested
• Bar coating: plain or epoxy
• Required test loads
• Jack you plan to use, if any
• Number of bars to test
• Jobsite location and schedule
• Rental or purchase preference
Buying or Renting Rebar Grips
WB Equipment supplies quick-acting rebar grips for bar sizes #4 to #18, for sale or rental, together with the center-hole jacks, pumps, chairs and calibrated gauges needed to use them. Grips are matched to the bar size and jack, and the hardened wedges can be replaced as they wear, so a grip lasts for many tests.
For projects with a set number of tests, we can also supply a complete pullout test kit, ready to use.
Where Are Rebar Grips Used?
Rebar grips connect a jack to a reinforcing bar without threading or welding, which makes them useful for:
● Pullout tests: proving grouted and epoxied dowels on highways, bridges and tunnels.
● Post-installed reinforcement: checking new bars added to existing concrete.
● Anchor testing: gripping unthreaded bars and anchors for proof loading.
● Tensioning: applying load to bars during construction.
● Rigging and special uses: temporary connections to bar for lifting or pulling.
Because the grips slide straight over the bar, each test takes only minutes to set up.
Your Questions Answered - Rebar Grips
What are rebar grips used for?
Rebar grips hold a reinforcing bar while a center-hole jack pulls on it, mainly for pullout testing of grouted or epoxied rebar.
How do rebar grips work?
Wedges sit in a tapered body. As the jack pulls, the wedges are drawn deeper into the taper and clamp the bar tighter.
What rebar sizes do you have grips for?
WB Equipment supplies grips for #4 through #18 rebar.
Can one grip fit all bar sizes?
No. Grips are bar-size specific, so you need the correct grip for each bar diameter.
What jack is used with rebar grips?
A center-hole (hollow plunger) hydraulic cylinder, such as Enerpac or Simplex, with a hand or powered pump.
How much load can a rebar grip hold?
It depends on bar size. Typical capacities are 20 to 30 tons for #6 bar, 30 to 50 tons for #8 bar and 75 tons or more for #11 bar.
Why does the bar slip slightly at the start?
Initial wedge seating slip is normal and should be allowed for in stroke and displacement measurements.
Can grips be used on epoxy-coated rebar?
Yes, but epoxy-coated bar requires special wedges for reliable grip.
Do grips damage the rebar?
The serrations are designed to bite into the ribs and minimize damage while preventing slip.
How long do wedges last?
Wedges are durable but wear over time. Replace them when teeth are worn or damaged.
Can I rent rebar grips?
Yes. Grips are available for rent or sale, alone or with a matching jack and pump.
Are grips available for other uses?
Yes. Grips are also available for rigging and special applications.
Authorised Enerpac & Simplex Distributor and Service Center
Call us now! 866-522-5464
Overnight 24 Hour
Next Day Delivery
Order before 3pm
Call for
detailed advice
and information
Request a rental quote now!
